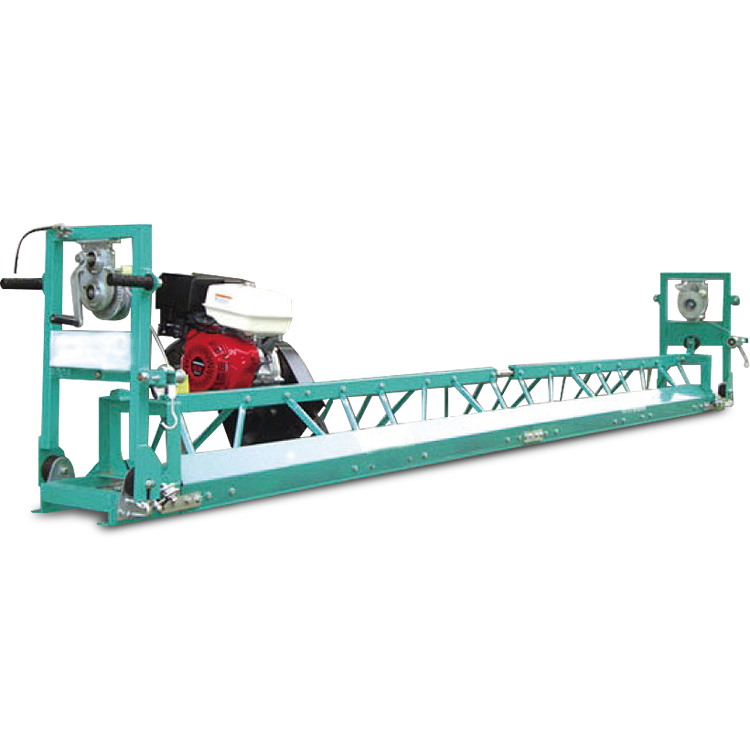

S-F Concrete Screed
- Category:Concrete Screed
- FOB Price: | Get Latest Price
- Min.Order Quantity:1 Set
- Supply Ability:
- Port:Ningbo/Shanghai China
- Payment Terms:L/C,T/T
Product Detail:
| Model( engine) | FHZP55X(< =)5500mm | FHZP90X(< =)8500mm | FHZP130X(>=)9000mm |
|---|---|---|---|
| Tap | |||
| Nominal amplitude | 0.6mm | ||
| Vibration frequency | 70Hz | ||
| Centrifugal force | 11kN/(< =)2000mm | ||
| Engine | |||
| Model | HONDA GX160 | HONDA GX270 | HONDA GX390 |
| Type | Gasoline engine, air-cooled 4-stroke, OHV, single cylinder | ||
| Power | 5.5hp/3600rpm | 9.0hp/3600rpm | 13.0hp/3600rpm |
| Fuel tank capacity | 3.6L | 6L | 6.5L |
| Lubricant | 0.6L | 1.1L | |
| Fuel consumption | 313g/kWh | ||
| Dimensions | |||
| Two meters combination Festival | 405mm×2000mm | ||
| One meter combination Festiva | 405mm×1000mm | ||
| Half a meter combination Festival | 405mm×250mm | ||
| Note: When ordering, you should buy a length of about 500mm width greater than construction machines | |||
