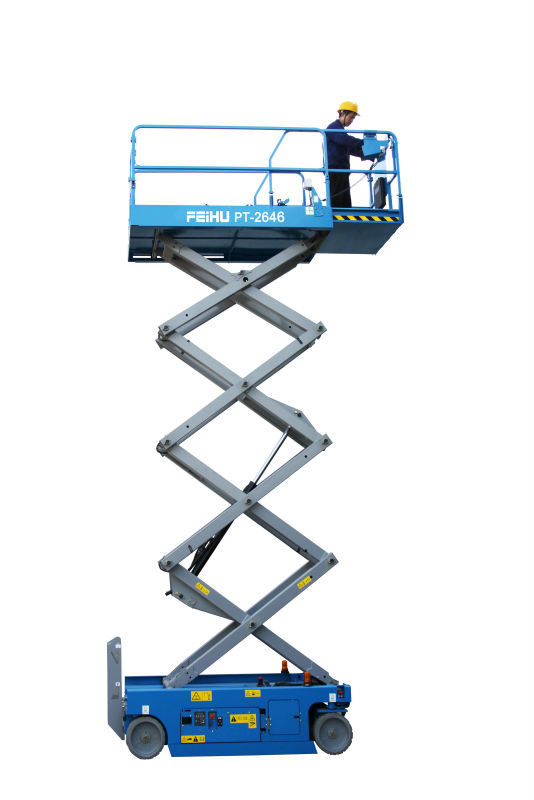

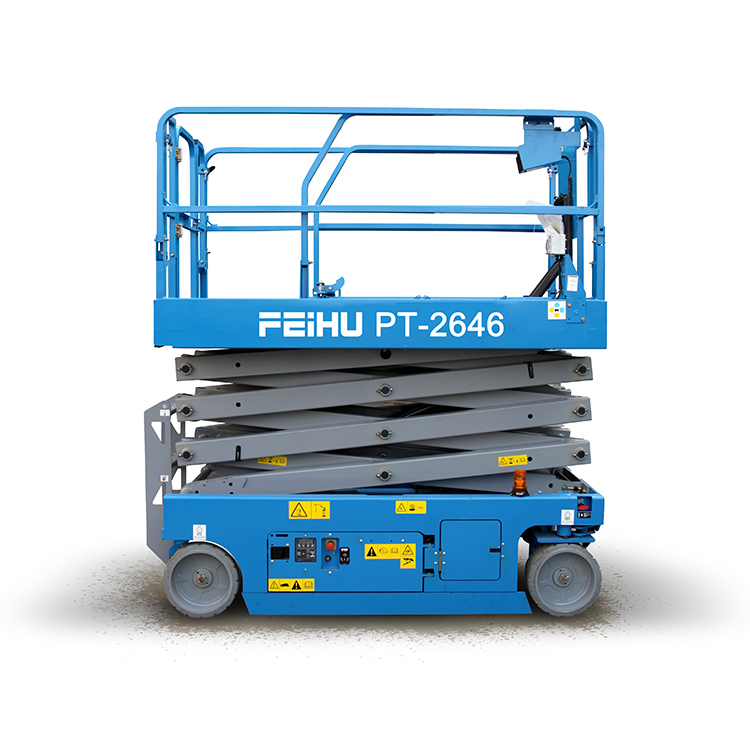

Product Detail:

Product Parameters:

Working height maximum:9.8m
A Platform height maximum:7.8m
B Platform height – stowed:1.16m
C Platform length – outside:2.26m
Slide-out platform extension deck:0.96m
D Platform width – outside:1.15m
Toeboard height:0.15m
E Height – stowed:2.26m
rails lowered:1.68m
F Length – stowed:2.41m
platform extended:3.33m
G Width:1.17m
H Wheelbase:1.85m
I Ground clearance – center:0.1
Maximum platform occupancy:2 person
Lift capacity:454kg
Extension deck capacity:136kg
Drive speed – stowed:3.5km/h
Drive speed – raised:0.8km/h
Gradeability – uphill stowed:30%
Turning radius – outside:2.29m
Raise/lower speed:30/38 second
Non-marking tires – rough terrain: 38 x 13 x 28cm
Power source:48V DC (Four 6V batteries,225 Ah capacity)
Hydraulic system capacity:17L


● Zero-emission electric operation
● Front-wheel drive and zero inside turning radius
● 39 in (1 m) roll-out platform extension on GS-2646
● Folding rails with full-height swing gate
● Universal 20 amp smart charger
● Proportional controls for lift and drive functions
● Multiple disc brakes provide smooth deceleration
● On-board diagnostics for easy troubleshooting
● Emergency stop at both platform and ground controls
● Solid, non-marking tires
● Manual platform lowering valve
● Tilt sensor with an audible alarm
